Self Drilling Screws

Hex Head
Hex Washer Head

Click here to Request a quote.

Hex Washer Head Screw Machine Screws
Tapping Screws
Self Drilling Screws		 Hex Head Screw
Nominal
Size		 A W H F U J T
Width
Across
Flats		 Width
Across
Corners		 Height
of
Head		 Diameter
of
Washer		 Thickness
of
Washer		 Width
of
Slot		 Depth
of
Slot
Max. Min. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min.
4
6
7
8
10
12
14
1/4
5/16
3/8		 .187
.250
.250
.250
.312
.312
.438
.375
.500
.562		 .181
.244
.244
.244
.305
.305
.428
.367
.489
.551		 .202
.272
.272
.272
.340
.340
.409
.409
.545
.614		 .060
.093
.093
.110
.120
.155
.190
.190
.230
.295		 .049
.080
.080
.096
.105
.139
.172
.172
.208
.270		 .243
.328
.328
.348
.414
.432
.520
.520
.676
.780		 .225
.302
.302
.322
.384
.398
.480
.480
.624
.720		 .019
.025
.029
.031
.031
.039
.050
.050
.055
.063		 .011
.015
.017
.019
.019
.022
.030
.030
.035
.037		 .039
.048
.048
.054
.060
.067
.075
.075
.084
.094		 .031
.039
.039
.045
.050
.056
.064
.064
.072
.081		 .042
.053
.062
.074
.080
.103
.111
.111
.134
.168		 .025
.033
.040
.052
.057
.077
.083
.083
100
.131



Slotted Pan Head Screw Pan Head
Machine Screws
Tapping Screws
Self Drilling Screws		 Phillips Pan Head Screw
SLOTTED PHILLIPS
Click here to Request a quote.

Nominal
Size		 A H H1 J T M G N Phillips
Driver
Size
Head Diameter Height of Head Width of Slot Depth of Slot Dimensions of Recess
Slotted Recessed Diameter Depth Width
Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min.
2
3
4
5
6
7
8
10
12
1/4
5/16
3/8		 .167
.193
.219
.245
.270
.296
.322
.373
.425
.492
.615
.740		 .155
.180
.205
.231
.256
.281
.306
.357
.407
.473
.594
.716		 .053
.060
.068
.075
.082
.089
.096
.110
.125
.144
.178
.212		 .045
.051
.058
.065
.072
.079
.085
.099
.112
.130
.162
.195		 .062
.071
.080
.089
.097
.106
.115
.133
.151
.175
.218
.261		 .053
.062
.070
.079
.087
.096
.105
.122
.139
.162
.203
.244		 .031
.035
.039
.043
.048
.048
.054
.060
.067
.075
.084
.094		 .023
.027
.031
.035
.039
.039
.045
.050
.056
.064
.072
.081		 .031
.036
.040
.045
.050
.054
.058
.068
.077
.087
.106
.124		 .022
.026
.030
.034
.037
.041
.045
.053
.061
.070
.085
.100		 .104
.112
.122
.158
.166
.176
.182
.199
.259
.281
.350
.389		 .091
.099
.109
.145
.153
.163
.169
.186
.246
.268
.337
.376		 .059
.068
.078
.083
.091
.100
.108
.124
.141
.161
.193
.233		 .017
.019
.019
.028
.028
.029
.030
.031
.034
.036
.169
.210		 1
1
1
2
2
2
2
2
3
3
4
4

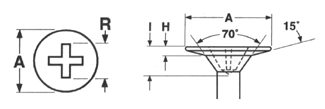

Wafer Head Screw Wafer Head
Self Drilling Screws		 Self Drilling Screw

Click here to Request a quote.

Size A H R I
Head Diameter Head Hgt. Recess Diameter Recess Depth
Max. Min. Max. Min. Max. Min. Max Min.
10 .480 .450 .055 .045 .222 .208 .142 .137



Machine Screws

Click here to Request a quote.

Nominal Screw Size O thru l2 1/4 thru 3/4
Nominal Screw Length Tolerance on Length
Up to 1/2 in., Incl.
Over 1/2 to 1 in., Incl.
Over 1 to 2 in., Incl.
Over 2 in.		 -0.02
-0.03
-0.06
-0.09		 -0.03
-0.03
-0.06
-0.09
Machine Screw



Type A – AB

Click here to Request a quote.

Nominal Screw Length Tolerance on Length
Up to 1 in., Incl.
Over 1 in.		 + 0.03
+ 0.05
Type A-AB Screw



Type B, F, H-L 1,
25 and 23

Click here to Request a quote.

Nominal Screw Length Tolerance on Length
Up to 3/4 in., Incl.
Over 3/4 to 1-1/2 in., Incl.		 – 0.03
– 0.05
Type B,F,H-L,1,25,23 Screw



Type U

Click here to Request a quote.

Nominal Screw Length Tolerance on Length
Up to 3/8 in., Incl.
Over 3/8 in.		 + 0.02
+ 0.03
Type U Screw



Wood Screws Click here toRequest a quote.

Nominal Screw Length Tolerance on Length
Up to 5/8in., Incl.
Over 5/8 to l-1/2 in., Incl.
Over l-1/2 to 2-3/4 in., Incl.
Over 2-3/4 to 5 in., Incl.		 -0.03
-0.05
-0.06
-0.09
Wood Screw



Self-Drilling Screws Self Drilling Screw
Click here to Request a quote.

Nominal
Size or Basic
Screw Diameter		 Threads
Per
Inch		 T t P
Major Diameter Minor Diameter Protrusion
Allowance
Max. Min. Max. Min. #2 Pt. #3 Pt
6 0.1380
20 0.139 0.135 0.104 0.099 0.190 —
8 0.1640
18 0.166 0.161 0.122 0.116 0.211 —
10 0.1900
16 0.189 0.183 0.141 0.135 0.235 0.300
12 0.2160
14 0.215 0.209 0.164 0.157 — 0.353
1/4 0.2500
14 0.246 0.240 0.192 0.185 — 0.393
